Pain points

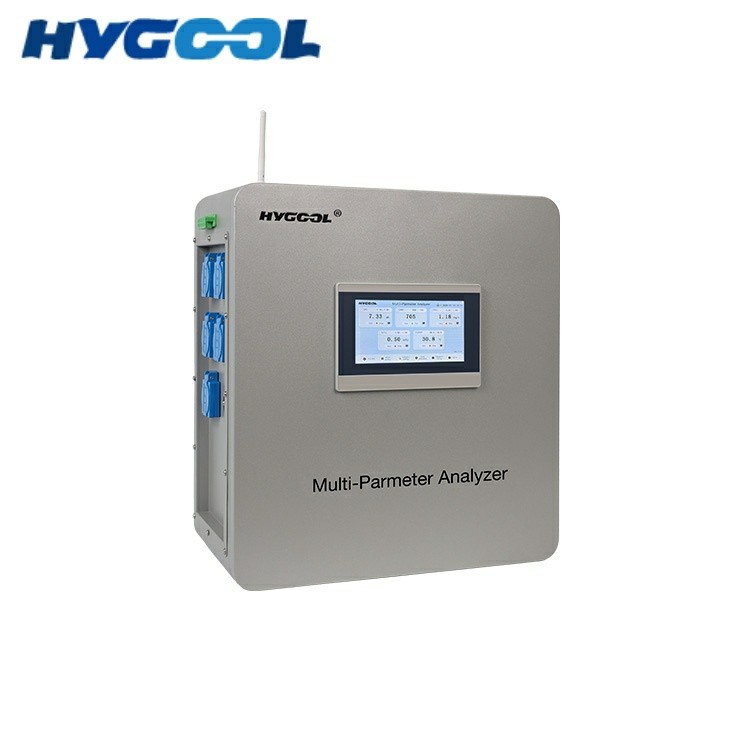

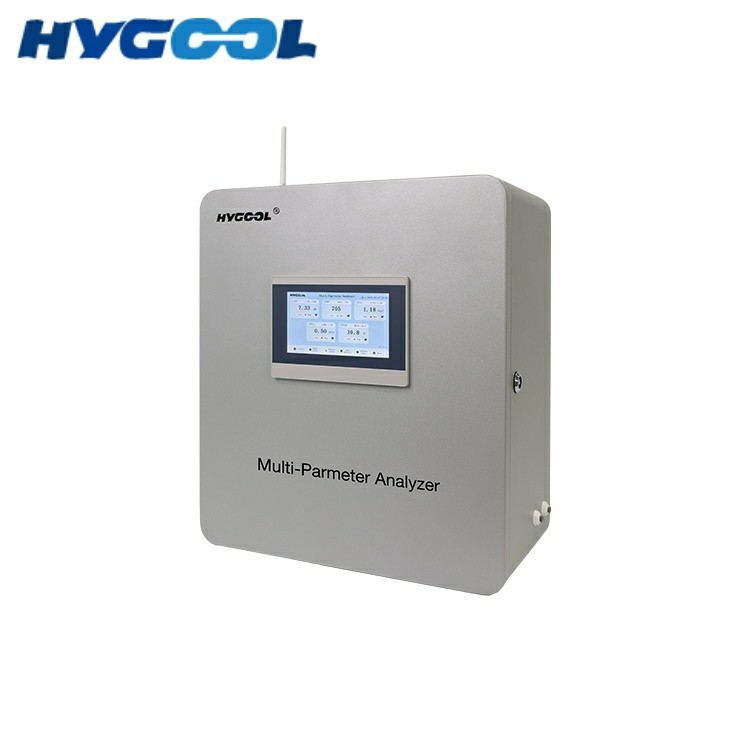

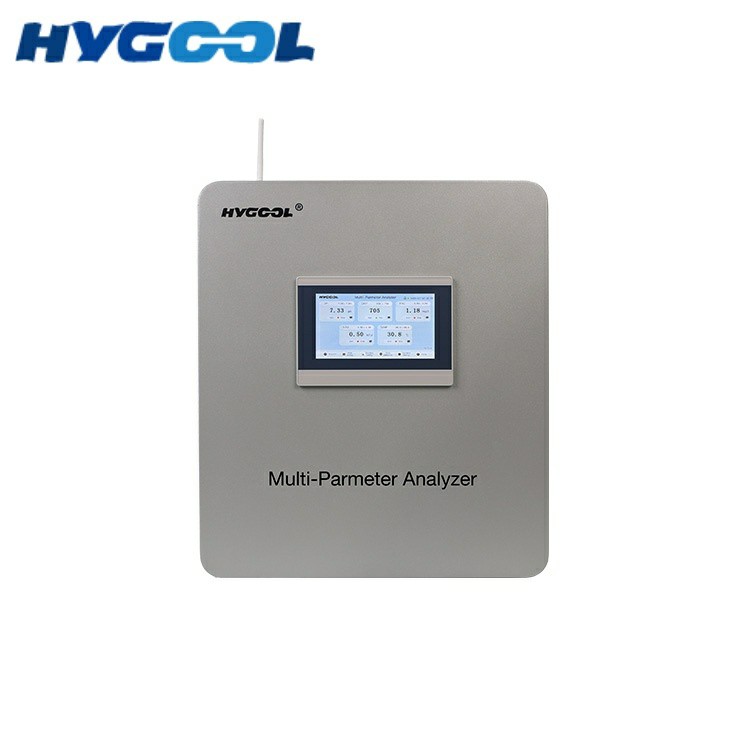

This multi-parameter online water quality monitor combines practical functions such as five-parameter monitoring, cloud-based supervision, and multi-network interconnection. It also supports bilingual (Chinese and English) communication, intelligent control, and precise calibration. It achieves high efficiency in all-dimensional water quality monitoring and significantly improves the ease of operation and maintenance through intelligent dosing and platform integration.
high quality
Advanced Equipment
Professional Team
One-Stop Solution
Core Features & Benefits

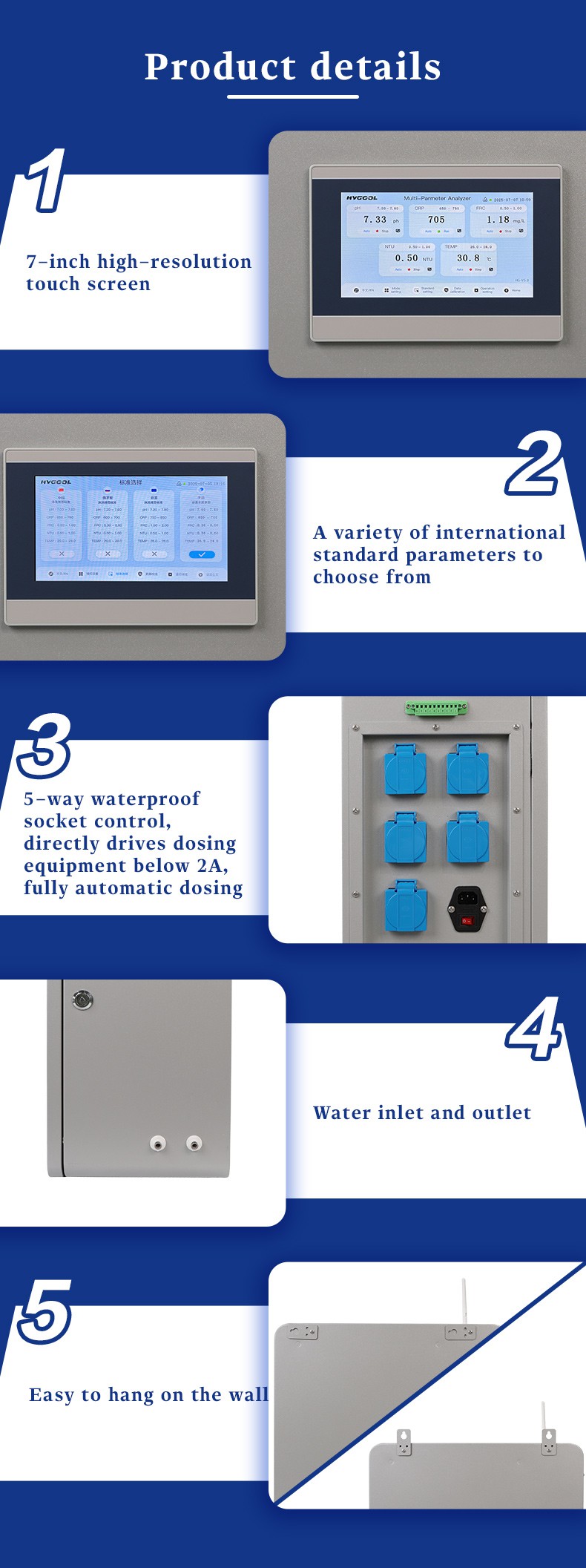

7-inch high-resolution touch screen
Intelligent control,with optional 7-inch and 10-inch high-resolution color touchscreens,and freely switchable manual function
a variety ofinternational standards
Simple and convenient to operate,with a variety ofinternational standard parametersto choose from.

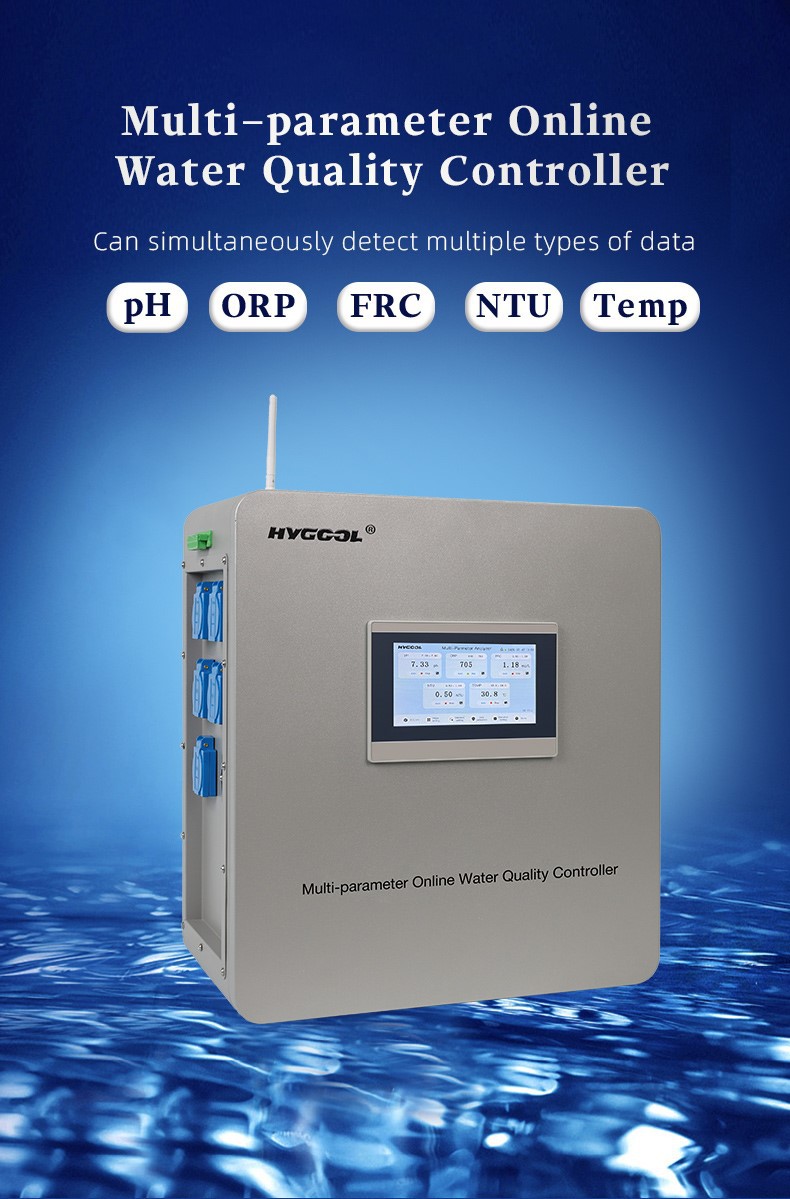

simultaneously detect five parameters
including ：
pH
ORP
residual chlorine
turbidity
temperature
Intelligent dosing

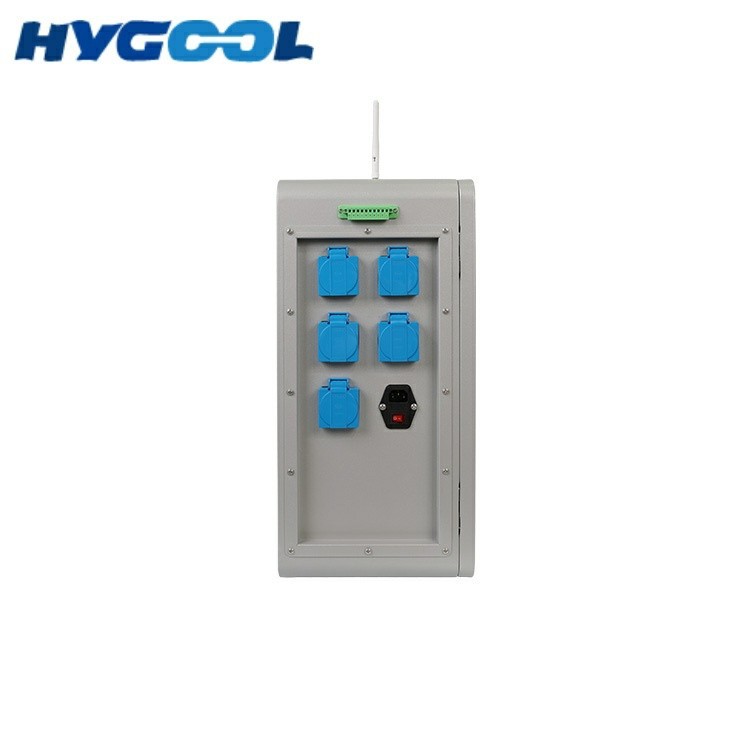

- 5 -way waterproof socket control,directly drives dosing equipment below 2A,fully automatic dosing.
- Reduces the frequency of water changes and lowers operating costs.
Integrated compliance & Revenue Management
Supports multiple internet connection methods; communication interfaces are reserved on the device's host computer.
Alarm function: SMS, email, and WeChat push notifications for water quality exceeding standards.
It comes with a built-in project payment reminder function, and the usage duration can be set to help collect project payments.
The API can transmit data to the health supervision bureau in real time.
Capable of online real-time cloud monitoring, allowing remote real-time viewing of water quality.
High accuracy and stable performance; employs high-precision signal acquisition and amplification circuits.
Why Choose Our Multi Parameter Water Monitoring system?
The sensor of the multi-parameter water quality monitor adopts the detection principles of constant voltage method and optical method, and designs a unique photoelectric receiving structure, as well as an automatic temperature and light compensation method, which greatly improves the detection accuracy and precision. It also adopts an efficient digital filtering algorithm to avoid interference such as noise. At the same time, a standard Modbus digital signal output is used to facilitate the user's access to other platform monitoring systems.

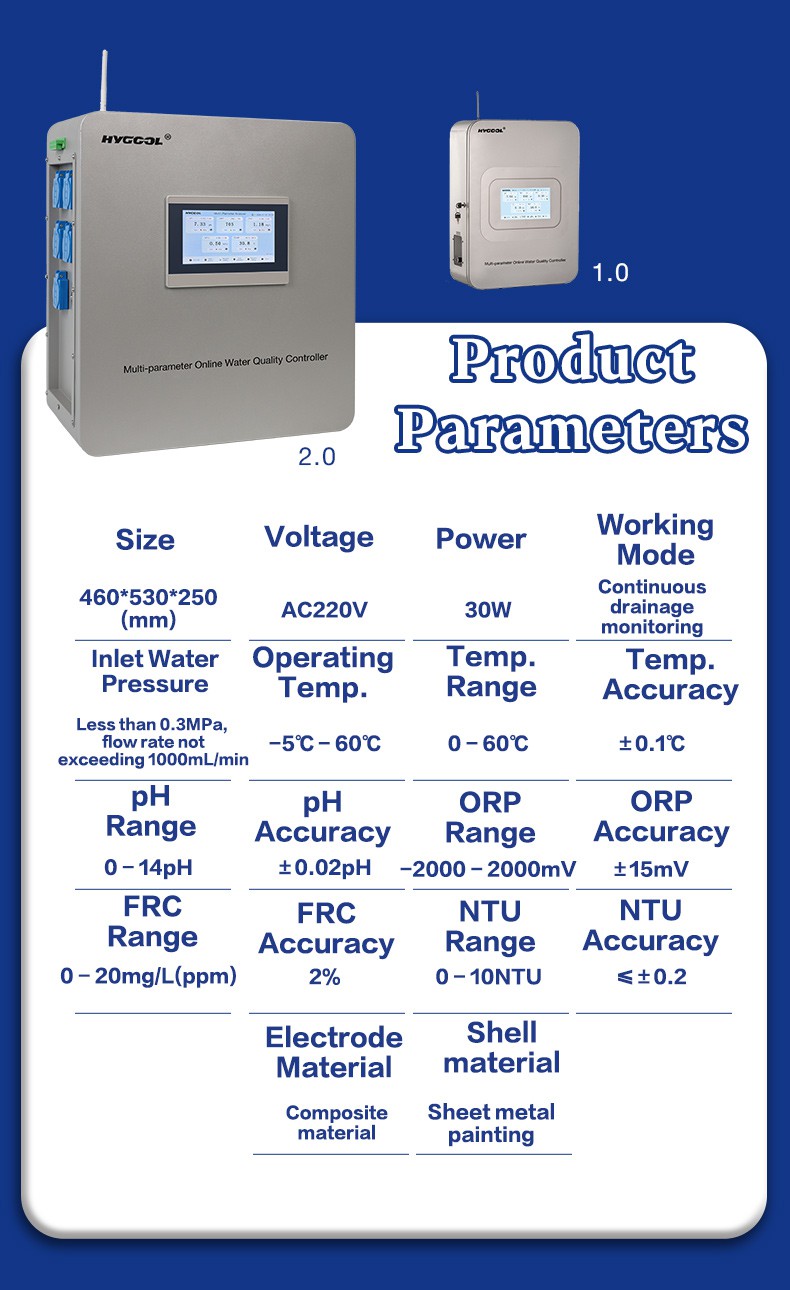

Product Parameters
Contrast
|
Comparison dimensions |
Multi-parameter water quality monitor |
Combination of multiple single-parameter instruments |
|
Monitoring methods |
Continuous, automatic, online, with real-time data updates. |
Data is distributed across different instruments |
|
Core advantages |
One-stop monitoring Data linkage High-efficiency integration |
Flexible configuration 2. Maintain isolation |
|
Core pain points |
Cost concentration |
Decentralized management High integration cost Large space |
|
Applicable scenarios |

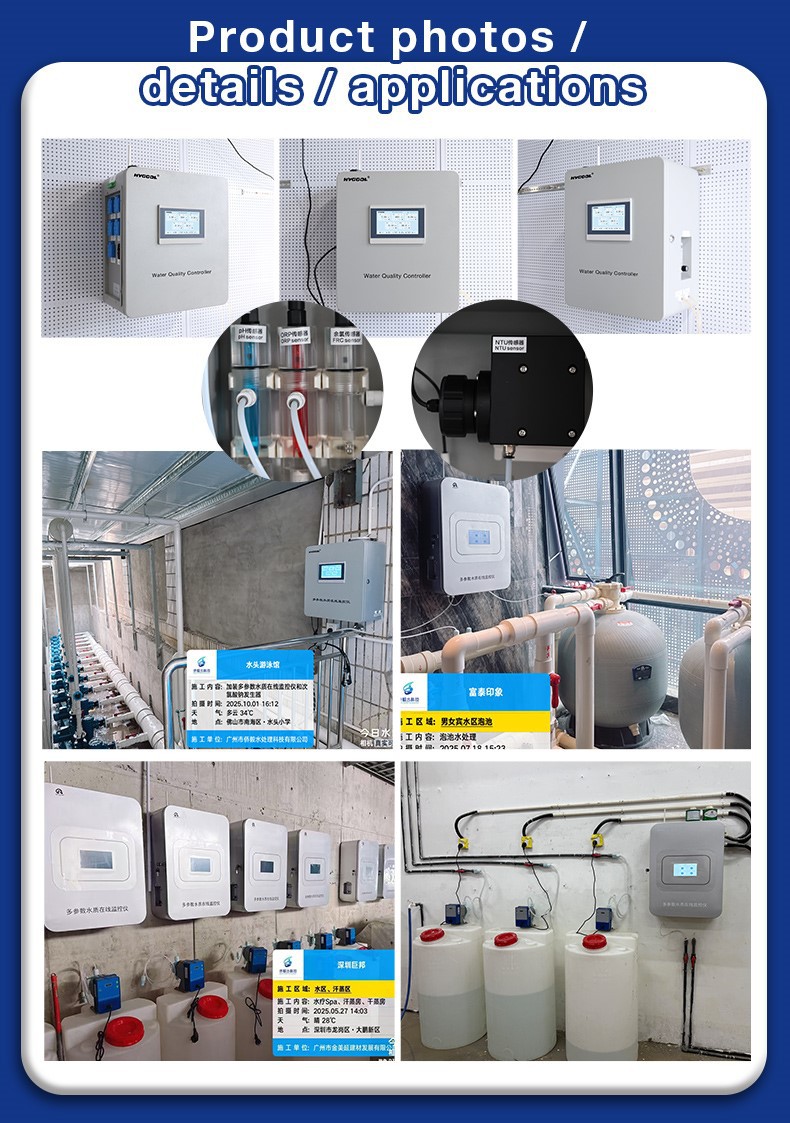

Smart pool/spa automated dosing system |
Distributed monitoring of pressure in different water pipes |
