The Swimming Pool Tubular Heat Exchanger is a highly efficient heat transfer device designed to heat swimming pool water by transferring thermal energy from external heat sources such as boilers, heat pumps, solar heating systems, or district heating networks. Featuring a durable shell-and-tube design, it delivers fast heat exchange, low pressure loss, and long service life, making it ideal for residential, commercial, and industrial pool heating applications.
high quality
Advanced Equipment
Professional Team
One-Stop Solution
Core Features & Benefits
High Heat Transfer Efficiency
Optimized shell-and-tube structure maximizes heat exchange surface area for rapid and efficient pool water heating.
Corrosion-Resistant Materials
Available with Titanium or 316L Stainless Steel heat exchange tubes, ensuring excellent resistance to chlorine, saltwater, and chemical corrosion.
Wide Compatibility
Compatible with various heating sources, including:
Swimming Pool Heat Pumps
Gas Boilers
Electric Boilers
Solar Heating Systems
Geothermal Systems
Central Heating Networks
Low Pressure Drop
Engineered internal flow channels minimize hydraulic resistance while maintaining efficient heat transfer.
Product Features
High-efficiency shell-and-tube heat exchanger
Titanium or 316L stainless steel construction
Corrosion-resistant design
Excellent thermal conductivity
Easy maintenance
Multiple capacity options
Why Choose Our Home Pool Thermostat?

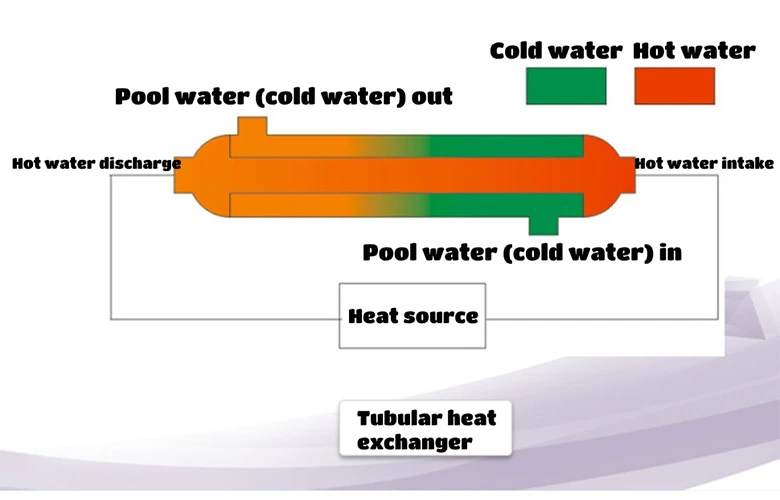

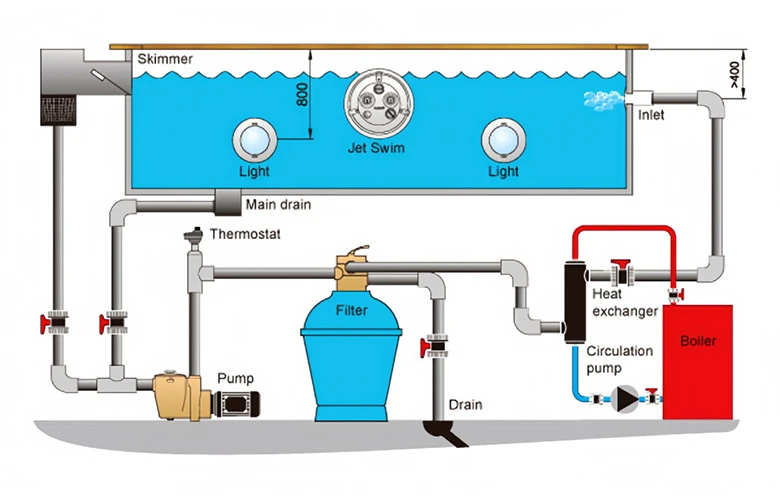

A tubular heat exchanger is one of the most reliable solutions for indirect pool water heating. Pool water flows through one side of the heat exchanger while hot water from the heating source circulates through the other side. The two fluids remain completely separated, ensuring safe, efficient, and contamination-free heat transfer.
Designed for continuous operation, the unit offers excellent thermal efficiency, corrosion resistance, and compatibility with various heating systems, helping reduce energy consumption while maintaining a stable pool temperature.
Guangzhou Qiaoyi Water Treatment Technology Co., Ltd. is one of the leading manufacturers and suppliers of pool tubular heat exchanger in China. We warmly welcome you to wholesale discount pool tubular heat exchanger from our factory. If you have any enquiry about customized service and after-sales service, please feel free to email us.
Hot Tags: pool tubular heat exchanger, China pool tubular heat exchanger manufacturers, factory, Commercial Pool Heat Pump, Home Pool Thermostat, Pool Tubular Heat Exchanger, swimming pool heating system
|
Model |
Power (KW) |
Power (kBtu/h) |
Weight (kg) |
Hot Water Flow (L/min) |
Pool Water Flow (L/min) |
|
MF80 |
28 |
28 |
3.5 |
18 |
150 |
|
MF135 |
40 |
135 |
4.0 |
25 |
200 |
|
MF200 |
60 |
200 |
5.2 |
30 |
250 |
|
MF260 |
75 |
260 |
6.4 |
35 |
300 |
|
MF400 |
120 |
400 |
10.9 |
50 |
360 |
