A good swimming pool must be equipped with a complete water treatment system, from large-scale equipment to small accessories, all parts contributing to a complete system. Let's take a look at the equipment needed for a complete swimming pool water treatment system.
I. Circulation and Filtration System
Core Function: Purifying water quality and maintaining water flow
Optional Solutions:
1. Traditional machine room equipment: Sand filter + water pump combination
2. Compact equipment: Laminar flow propeller/integrated equipment (wall-mounted/ground-mounted)
II. Disinfection System – The "Defense Line" for Water Quality Safety
The function of swimming pool disinfection equipment is to disinfect the pool water. After multiple cycles of use, the bacteria in the pool water will continuously increase. If the water is not changed in a short period, we have to disinfection.

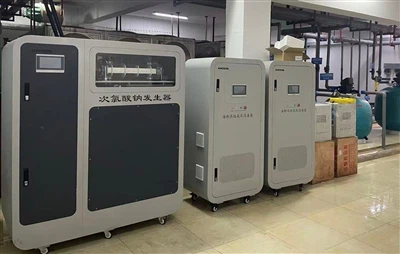

Common disinfection methods: Manual dosing, sodium hypochlorite generator, ozone disinfection, uv sterilizer, physical disinfection, or copper-silver ion water treatment disinfection, etc.
swimming pool water treatment system
III. Temperature Control System – Guaranteeing a Comfortable Experience
Standard Configuration for Indoor Swimming Pools:
1. Heating Module:
• Air Source Heat Pump (COP≥4.0, energy efficiency 300% of higher than electric boilers)
• Solar Energy + Electric Auxiliary (40% annual electricity cost savings, suitable for areas with ample sunshine)
2. Constant Temperature Dehumidification:
• Three-in-one Heat Pump (Dehumidification capacity ≥1kg/kW·h, Fresh air volume ≥30m³/person·h)
• Independent Dehumidifier (Optional: Rotary dehumidifier, humidity control accuracy ±3%RH)
IV. Functional Accessories – Multipliers of Operational Efficiency
Essential Basic Equipment:
• Non-slip Handrail (Material: 304 stainless steel, load-bearing capacity ≥200kg)
• Multi-parameter Online Water Quality Monitor (Parameters: residual chlorine/pH/ORP/turbidity, accuracy ±0.01%)
