Mediterranean Hot Spring Resort Guiyang
Complete Hot Spring & SPA Water Treatment Solution for Luxury Resort
Project Case Study by Qiaoyi Water Treatment Technology
|
Project Name |
Mediterranean Hot Spring Resort Guiyang |
|
Project Type |
Luxury Hot Spring Resort Hotel |
|
Application |
Hot Spring Pools / SPA Facilities / Wellness Areas |
|
Main Systems |
Filtration System, Disinfection System, Circulation System, Heating System, Intelligent Control System |
Design Framework
|
|
|
|
|
|
|
|
Ensure Consistent Water Quality Across Multiple Areas
The resort comprises multiple hot spring facilities, each with different usage requirements.
01
Manage Mineral-Rich Hot Spring Water
Natural hot spring water contains minerals and organic matter, which can affect water quality.
02
Support Resort Operations
Hot spring resorts operate for extended periods with a continuous flow of visitors.
03
Improve Energy and Maintenance Efficiency
Large resort facilities require optimized operations to reduce costs.
04

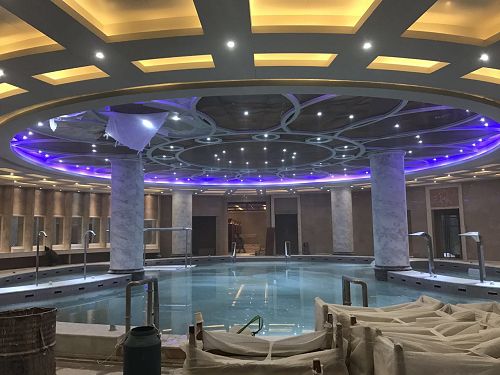

Construction & Installation Process
Hygool leveraged its professional technical expertise to create a high-quality water environment solution for the Guiyang Mediterranean Hot Spring Hotel. The core water treatment equipment features a well-organized layout and efficient operation, achieving real-time water quality compliance through precise circulation filtration and safe disinfection processes, balancing cleanliness and skin-friendliness. During construction, the team strictly adhered to industry standards, ensuring standardized operations at every step, from precise equipment installation to system integration and commissioning.
Core Equipment & Technology
This multi-parameter online water quality monitor measures pH, ORP, residual chlorine, and turbidity in real time
Project Results
Swimming pool, spa, sauna and steam room equipment configuration
|
Name |
Water area(m²) |
Water volume(m³) |
Circulation way |
Core equipment |
Cover system |
Remark |
|

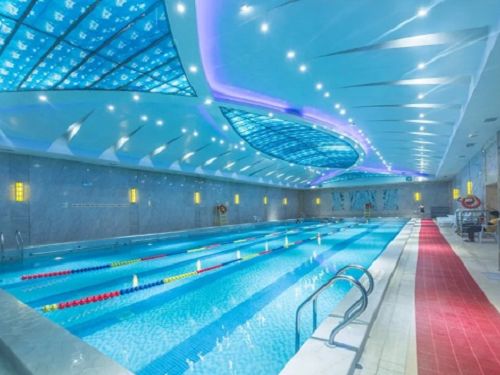

Swimming pool |
360 |
540 |
Counter flow |
Pool equipment: Water quality monitor, sand filter, circulating water pump,,balance tank |
Circulation, filtration, disinfection |
|
|
Children's play pool |
1120 |
371.4 |
Mixed circulation |
Pool equipment: Water quality monitor, UV sterilizer, functional water pump, balance tank |
Circulation, filtration, disinfection, water play features |
Large kids' water fortress, apple playhouse, bear spray feature, vine sprinkler, seahorse sprinkler, dolphin sprinkler, fox sprinkler, elephant slide, Pencil sprinkler, fun rain columns, crocodile slide, frog slide, rainbow slide, colorful spray corridor, water seesaw, 5D tipping water bucket, kangaroo sprinkler, rain column sprinkler, clown sprinkler, monster sprinkler, wildflower sprinkler |
|
Wave pool |
1170 |
1100 |
Mixed circulation |
Pool equipment: Balance tank, wave Machine, UV sterilizer |
Circulation, filtration, disinfection, make waves function |
|
|
Women's thermal pool |
50 |
45 |
Mixed circulation |
Pool equipment: Sand filter, circulating water pump |
Circulation, filtration, disinfection, |
Rapid Jet Barrage Bath, Curved Hook Jet Massage Bath, Duckbill Jet Massage Bath, Foot Massage Bath, Full-Body Massage Bath, Lunar Massage Bath, Lumbar & Leg Massage Bath, Dynamic Spring Jet |
|
Men's thermal pool |
164.4 |
147.9 |
Mixed circulation |
Pool equipment: Water quality monitor, sand filter, circulating water pump, balance tank, functional water pump, functional air pump |
Circulation, filtration, disinfection,, massage function |
Full-Body Massage Bath, Waist Slimming Bath, Water Curtain Precursor, Foot Massage Bath, Hip Massage Bath, Massage Water Bed, Lumbar Massage, Dynamic Spring spa,,Vichy Shower, Lunar Shower, Duckbill Jet Massage Bath, Rapid Jet Barrage Bath, Dreamy Float Bath |
|
Men's hot pool |
21.3 |
19.2 |
Mixed circulation |
Pool equipment: Sand filter, circulating water pump, functional water pump |
Circulation, filtration, disinfection,, massage function |
Massage Chair, Dynamic spring spa |
|
Men's regular-temperature pool |
21.3 |
19.2 |
Mixed circulation |
Pool equipment: Sand filter, circulating water pump, functional air pump |
Circulation, filtration, disinfection,, massage function |
Dynamic spring spa |
|
Men's cold plunge pool |
1.7 |
1.2 |
Concurrent flow |
Pool equipment: Sand filter, circulating water pump, chiller |
Circulation, filtration, disinfection,, massage function, constant temperature, cooling |
|
Name |
Area(m²) |
Q'ty(pcs) |
Core equipment |
|
Women's dry sauna room |
15.2 |
1 |
Stainless steel sauna heater |
|
Women's 10D steam room |
5.4 |
1 |
Steam generator |
|
Men's dry sauna room |
19.1 |
1 |
Stainless steel sauna heater |
|
Men's med-temperature dry sauna room |
29.5 |
1 |
Stainless steel sauna heater |
|
Men's 12F steam room |
8 |
1 |
Steam generator |
|

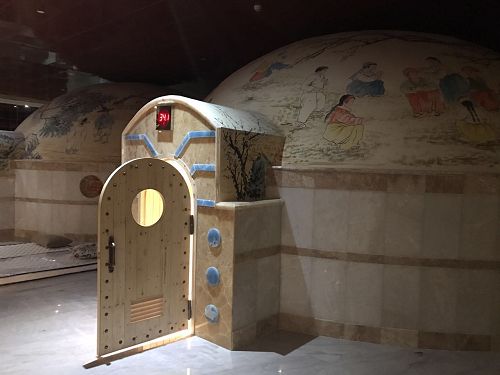

Salt sauna yurt |
32.6 |
1 |
Stainless steel sauna heater |
|
Crystal yurt |
32.6 |
1 |
Stainless steel sauna heater |
|
Ginseng & Ganoderma room |
41.3 |
1 |
Stainless steel sauna heater |
|
Salt Stone Sauna |
59.5 |
1 |
Stainless steel sauna heater |
|
Jade Stone Sauna |
41.3 |
1 |
Stainless steel sauna heater |
|
Ice Room |
15 |
1 |
Snow generator, chiller |
|
Two-Level Oxygen & Book Lounge |
34.2 |
1 |
Heating Cable, Oxygen Concentrator |
