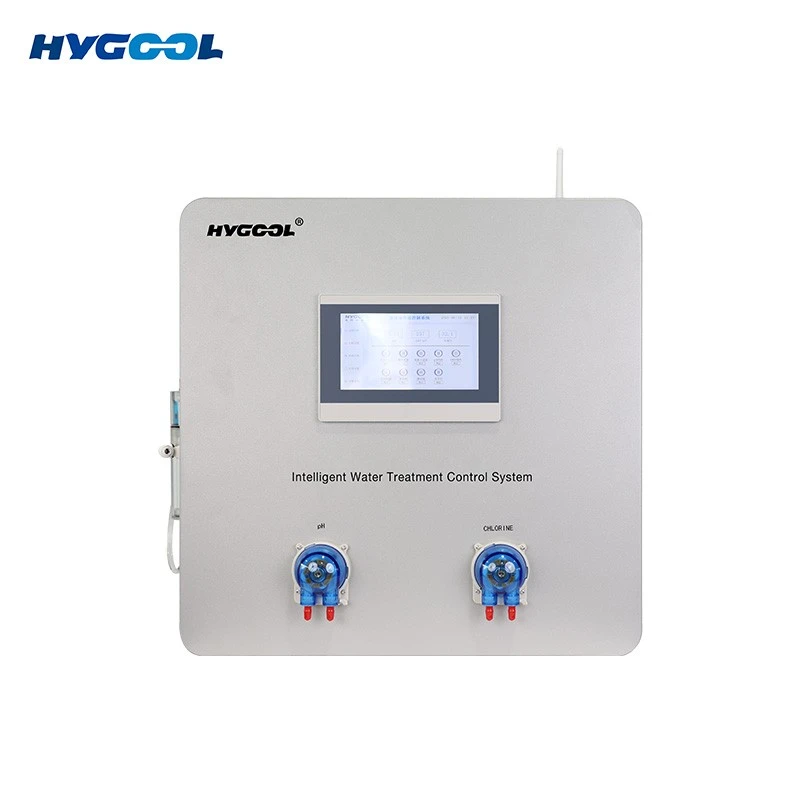

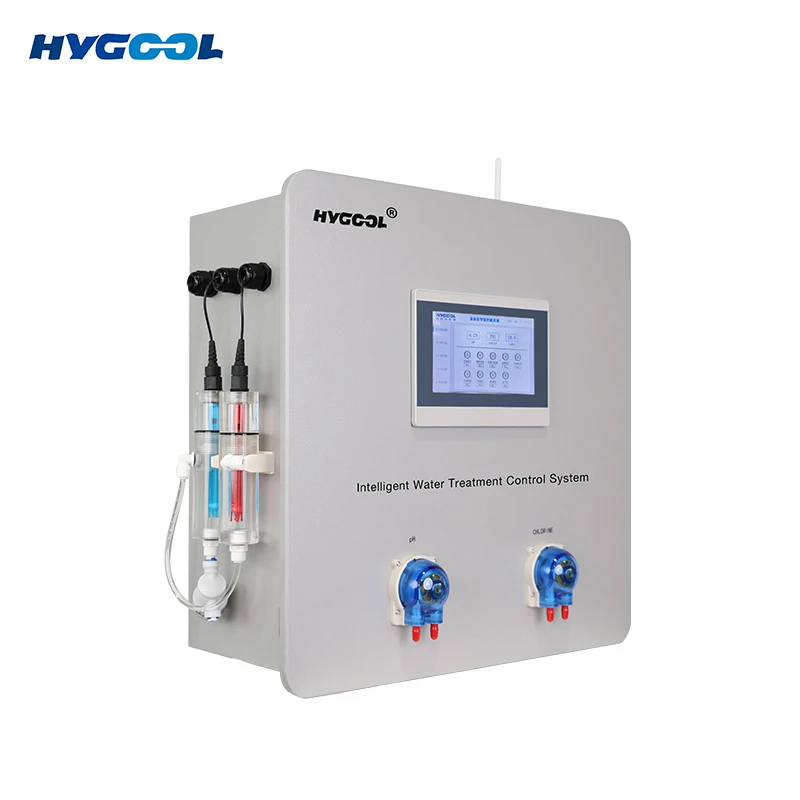

The intelligent water treatment control system is a smart management hub specifically designed for modern swimming pools and various types of water bodies. With the design concept of "controlling everything with one screen," the system uses a 7-inch high-definition touchscreen to achieve comprehensive integrated management from water quality monitoring and equipment control to intelligent chemical dosing, ushering in a new era of smart water management.
high quality
Advanced Equipment
Professional Team
One-Stop Solution
Core Features & Benefits
7-inch high-resolution touch screen
7-inch HD touch screen, Chinese-English bilingual, intuitive operation
a variety ofinternational standards
Simple and convenient to operate,with a variety ofinternational standard parametersto choose from.
Integrated control of filter pump, automatic sand tank head, water replenishment, drainage, underwater lighting, automatic thermostat, and integrated dosing
Intelligent dosing
Built-in peristaltic pump, no additional installation required
Product Features
Monitoring parameters: Five parameters: pH, ORP, residual chlorine, turbidity, and temperature.
Control equipment: Circulation pump, sand filter, chemical dosing pump, drain valve, thermostatic system, underwater lights, etc.
Drug delivery system: Equipped with a peristaltic pump, fully automatic drug dispensing.
Internet connectivity: Cloud monitoring, multiple network connection modes
User interface: Bilingual (Chinese and English), graphical interface
High accuracy and stable performance: employs high-precision signal acquisition and amplification circuits.
Why Choose Our Intelligent Water Treatment Control System?
The HYGOOL Intelligent Water Treatment Control System is a smart automation solution designed for swimming pools and various water treatment applications. Equipped with a 7-inch HD touchscreen, it integrates water quality monitoring, equipment control, and automatic chemical dosing into one platform. The system continuously monitors pH, ORP, residual chlorine, turbidity, and temperature, while intelligently controlling circulation pumps, sand filters, dosing pumps, drain valves, thermostatic systems, and underwater lights. Featuring a high-precision peristaltic dosing pump and cloud remote monitoring, it enables real-time management, reduces manual operation, improves water quality stability, and enhances overall operational efficiency.
Guangzhou Qiaoyi Water Treatment Technology Co., Ltd. is one of the leading manufacturers and suppliers of intelligent water treatment control system in China. We warmly welcome you to wholesale discount intelligent water treatment control system from our factory. If you have any enquiry about customized service and after-sales service, please feel free to email us.
Hot Tags: intelligent water treatment control system, China intelligent water treatment control system manufacturers, factory, Intelligent Water Quality Testing Equipment For Swimming Pools, pool water monitoring system, Smart PH Sensor, Smart Water Quality Monitoring Dosing System, Swimming Pool Water Quality Monitoring Equipment, Water Quality Online Monitor

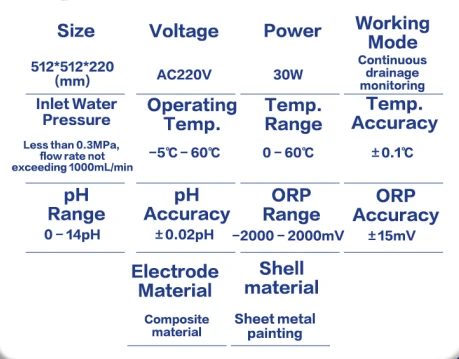

| Parameter | Specification |
|---|---|

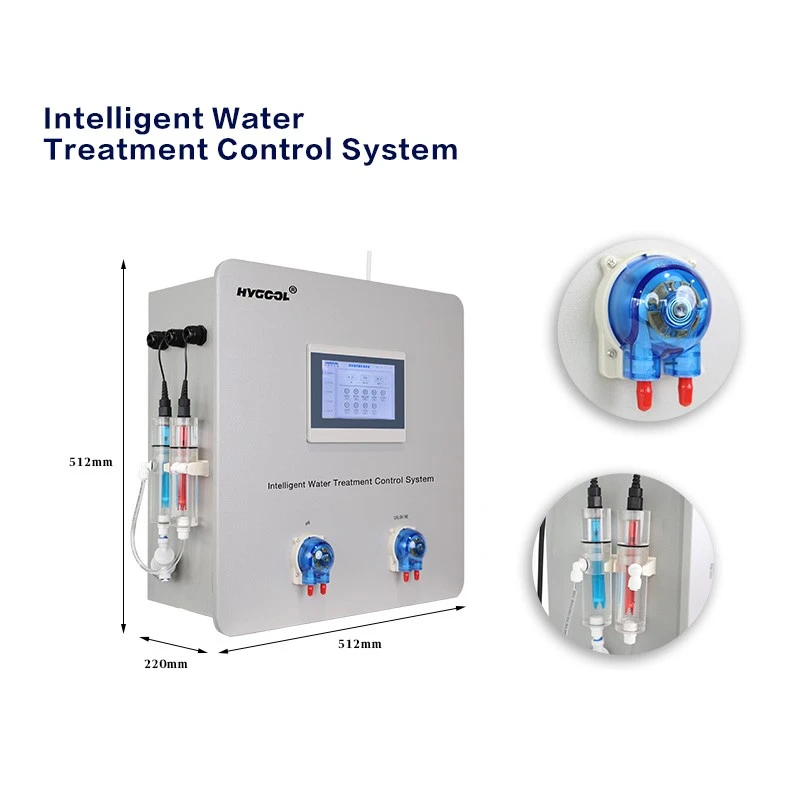

| Size | 512×512×220 mm |
| Voltage | AC220V |
| Power | 30W |
| Working Mode | Continuous drainage monitoring |
| Inlet Water Pressure | Less than 0.3MPa, flow rate not exceeding 1000mL/min |
| Operating Temp. | -5℃‑60℃ |
| Temp. Range | 0‑60℃ |
| Temp. Accuracy | ±0.1℃ |
| pH Range | 0‑14pH |
| pH Accuracy | ±0.02pH |
| ORP Range | -2000‑2000mV |
| ORP Accuracy | ±15mV |
| Electrode Material | Composite material |
| Shell material | Sheet metal painting |
