Pain points
This Water Quality Online Monitor combines practical functions such as five-parameter monitoring, cloud-based supervision, and multi-network interconnection. It also supports bilingual (Chinese and English) communication, intelligent control, and precise calibration. It achieves high efficiency in all-dimensional water quality monitoring and significantly improves the ease of operation and maintenance through intelligent dosing and platform integration.
high quality
Advanced Equipment
Professional Team
One-Stop Solution
Core Features & Benefits

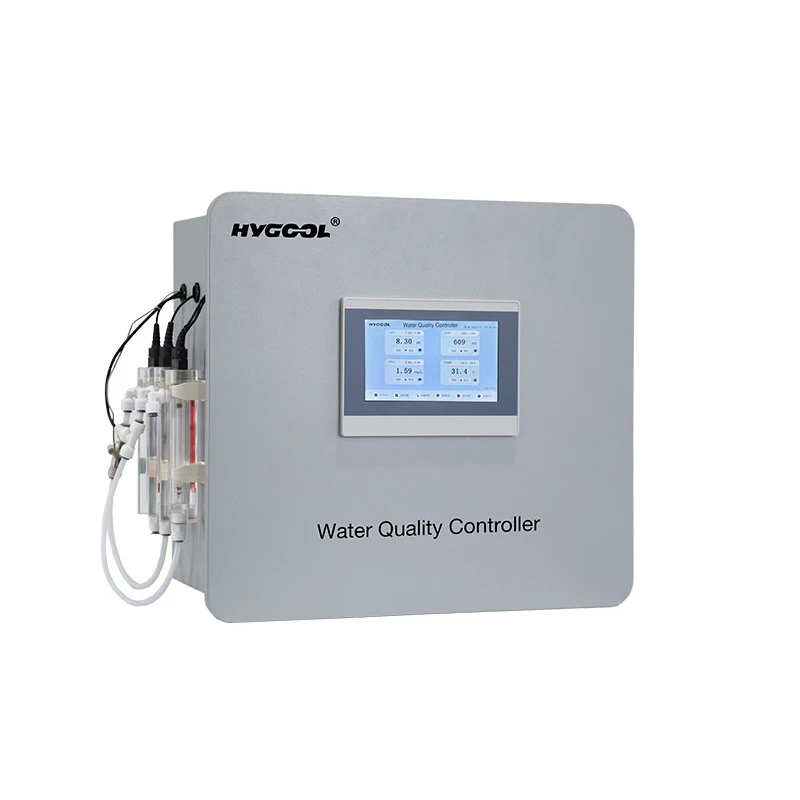

7-inch high-resolution touch screen
7-inch HD touch screen, Chinese-English bilingual, intuitive operation
a variety ofinternational standards
Simple and convenient to operate,with a variety ofinternational standard parametersto choose from.
Simultaneous detection of four parameters
Including:
pH
ORP
Residual chlorine
Temperature. Customizable.
Intelligent dosing
5 -way waterproof socket control,directly drives dosing equipment below 2A,fully automatic dosing.
Reduces the frequency of water changes and lowers operating costs.
Product Features
Supports multiple internet connection methods; communication interfaces are reserved on the device's host computer.
Alarm function: SMS, email, and WeChat push notifications for water quality exceeding standards.
It comes with a built-in project payment reminder function, and the usage duration can be set to help collect project payments.
The API can transmit data to the health supervision bureau in real time.
Capable of online real-time cloud monitoring, allowing remote real-time viewing of water quality.
High accuracy and stable performance; employs high-precision signal acquisition and amplification circuits.
Why Choose Our Water Quality Online Monitor?
This Water Quality Online Monitor combines practical functions such as five-parameter monitoring, cloud-based supervision, and multi-network interconnection. It also supports bilingual (Chinese and English) communication, intelligent control, and precise calibration. It achieves high efficiency in all-dimensional water quality monitoring and significantly improves the ease of operation and maintenance through intelligent dosing and platform integration.
Guangzhou Qiaoyi Water Treatment Technology Co., Ltd. is one of the leading manufacturers and suppliers of water quality online monitor in China. We warmly welcome you to wholesale discount water quality online monitor from our factory. If you have any enquiry about customized service and after-sales service, please feel free to email us.
Hot Tags: water quality online monitor, China water quality online monitor manufacturers, suppliers, factory, Intelligent Water Quality Testing Equipment For Swimming Pools, Intelligent Water Treatment Control System, Online Water Quality Monitoring Equipment, pool water monitoring system, Smart PH Sensor, Water Quality Online Monitor

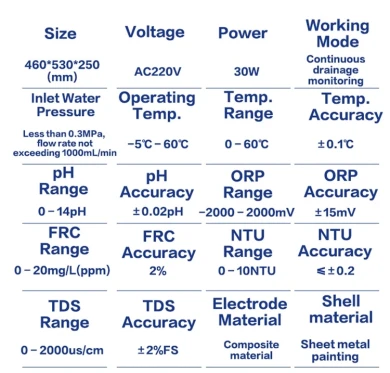

| Parameter | Specification |
|---|---|
| Size | 460×530×250 mm |
| Voltage | AC220V |
| Power | 30W |
| Working Mode | Continuous drainage monitoring |
| Inlet Water Pressure | Less than 0.3MPa, flow rate not exceeding 1000mL/min |
| Operating Temp. | -5℃‑60℃ |
| Temp. Range | 0‑60℃ |
| Temp. Accuracy | ±0.1℃ |
| pH Range | 0‑14pH |
| pH Accuracy | ±0.02pH |
| ORP Range | -2000‑2000mV |
| ORP Accuracy | ±15mV |
| FRC Range | 0‑20mg/L(ppm) |
| FRC Accuracy | 2% |
| NTU Range | 0‑10NTU |
| NTU Accuracy | ≤±0.2 |
| TDS Range | 0‑2000us/cm |
| TDS Accuracy | ±2%FS |
| Electrode Material | Composite material |
| Shell material | Sheet metal painting |
Contrast
|
Technical Highlights |
Description |
|
Monitoring Parameters |
4 core parameters (pH, ORP, residual chlorine, temperature), synchronous and accurate |
|
Standard Adaptation |
Supports Chinese, Russian, EU standards; manual setting for multi-scenario needs |
|
Control Function |
5 waterproof sockets, supports intelligent dosing control, precise management |
|
Display System |
7-inch HD touch screen, Chinese-English bilingual, intuitive operation |
|
Networking Mode |
Multiple networking modes, cloud platform management, remote controllable |
|
Installation Method |
Wall-mounted installation, time-saving and labor-saving |
|
Calibration & Maintenance |
Remote assistance calibration, reducing maintenance difficulty |
