Built using advanced fiberglass winding technology and an optimized hydraulic model, this product is specifically designed for efficient filtration of recreational water bodies such as swimming pools, water parks, hot springs, and spas. Combining a compact structure, strong corrosion resistance, easy maintenance, and adaptability to different spaces, this product is the ideal choice for various recreational water filtration systems.
high quality
Advanced Equipment
Professional Team
One-Stop Solution
Core Features & Benefits
Corrosion and weather resistance
The glass fiber used in the fiberglass top-mounted sand filter is a composite material of epoxy resin and glass fiber with a tensile strength of 350MPa. Long-term exposure to ultraviolet rays and hot and humid conditions will not cause material degradation, and the service life exceeds 10 years.
side-mounted
The side-mounted design concentrates the valves and controls on the top of the filter tank. There is no need to disassemble the filter tank body during operation, and supports rapid backwashing and filter material replacement.

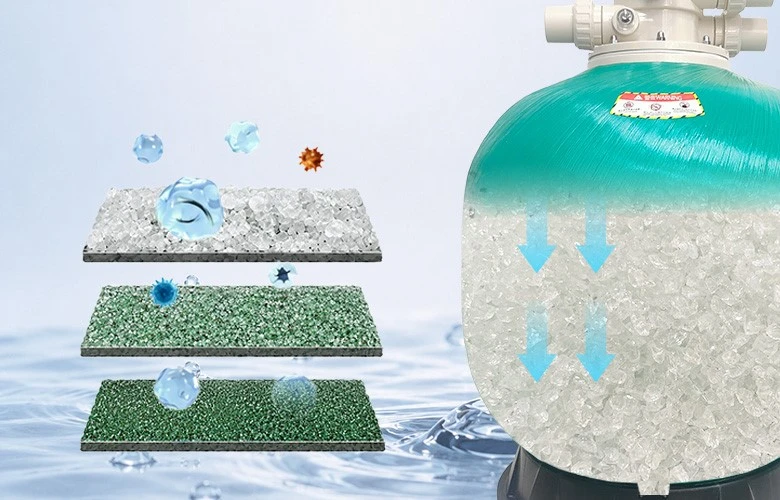

High purification efficiency
The equipment uses screened quartz sand with uniform particle size, with a particle size between 0.45-0.55 mm and a density of about 2.65 g/cm3, ensuring uniform filter layer thickness.
Product Features
Materials and craftsmanship: Fiberglass winding, corrosion resistant and UV resistant

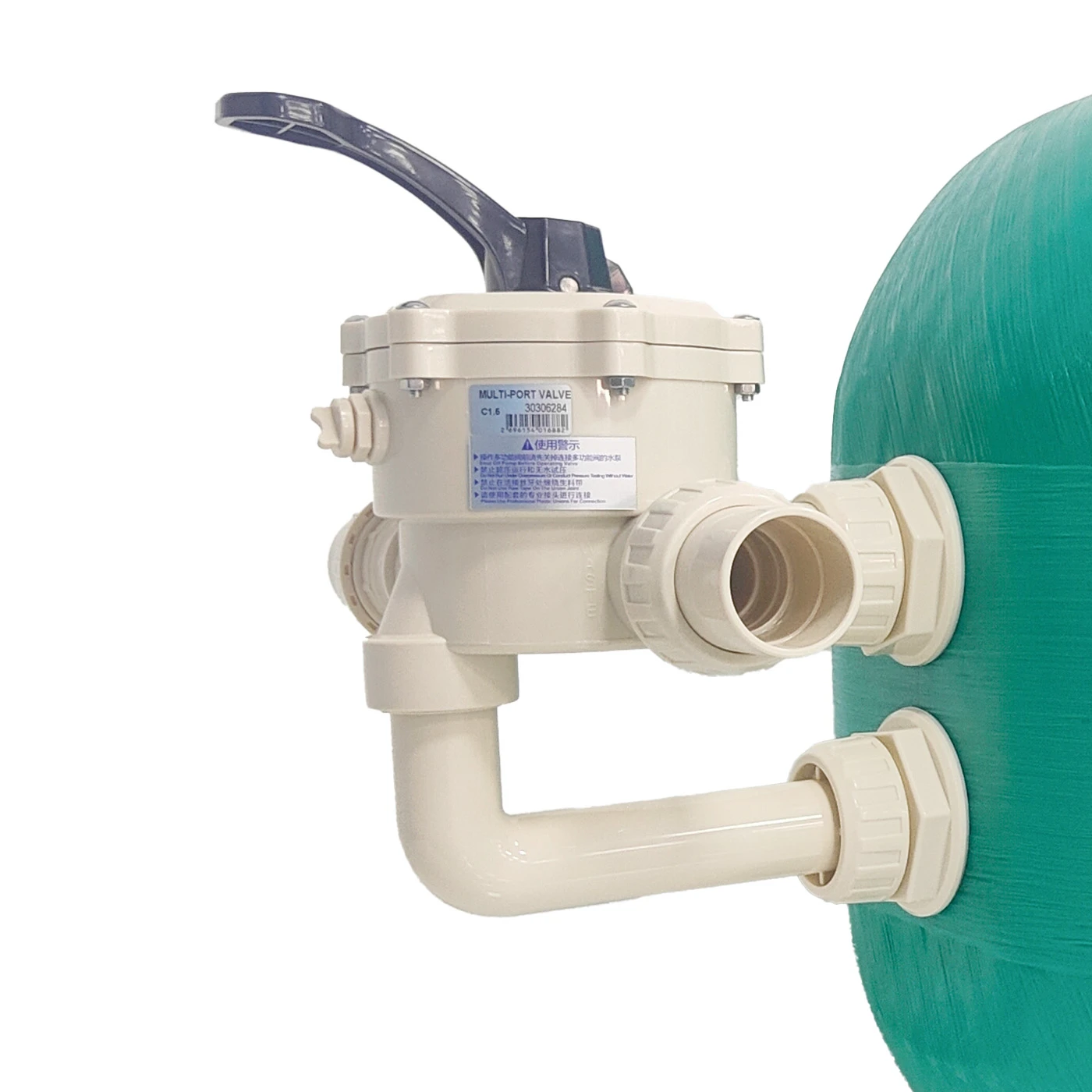

Valve system: 6/8-way valve, easy to operate
Operating characteristics: Low noise design, easy installation

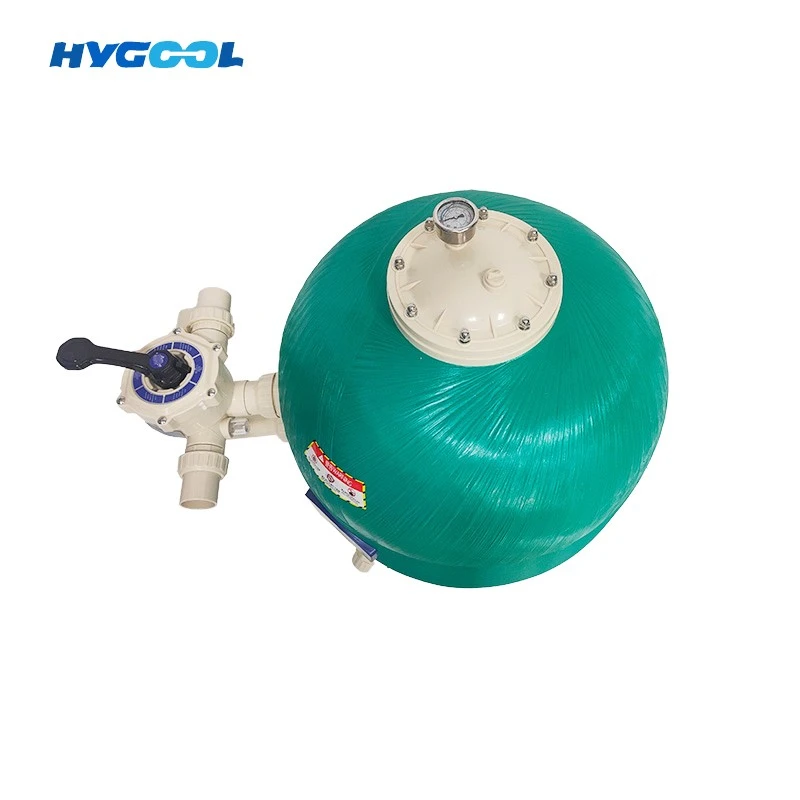

Monitoring System: Anti-vibration pressure gauge, real-time monitoring
Maintenance Design: The filter tube is stable and durable, and replacement is simple.
Installation Features: Compact structure and high space utilization

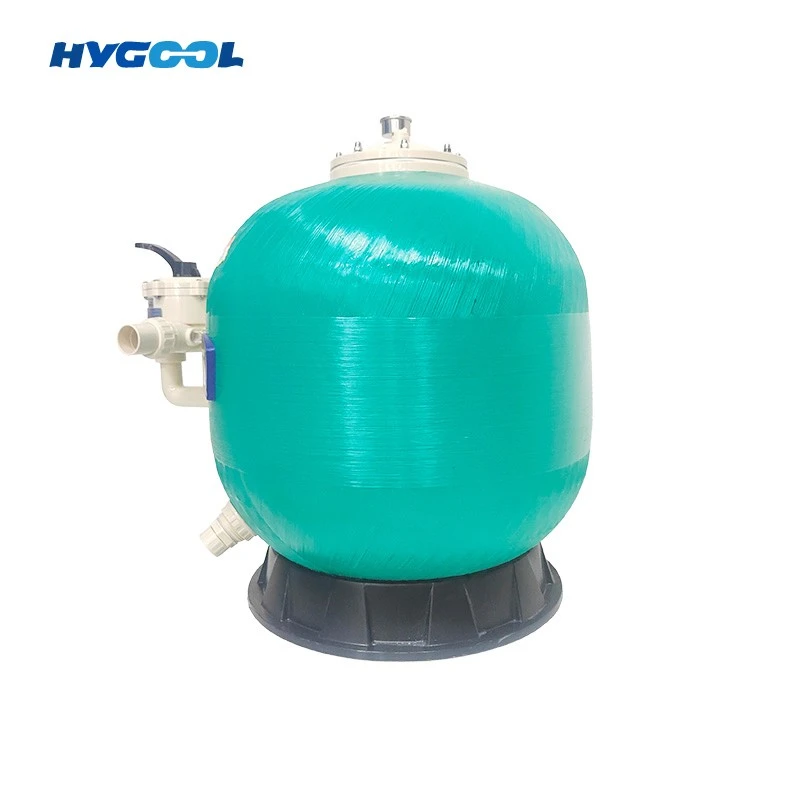

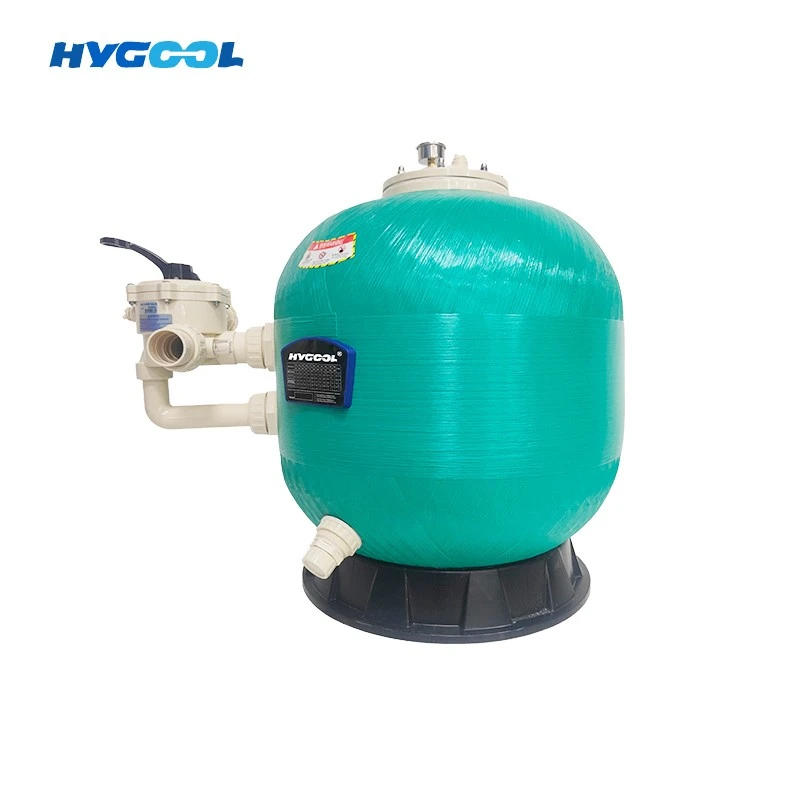

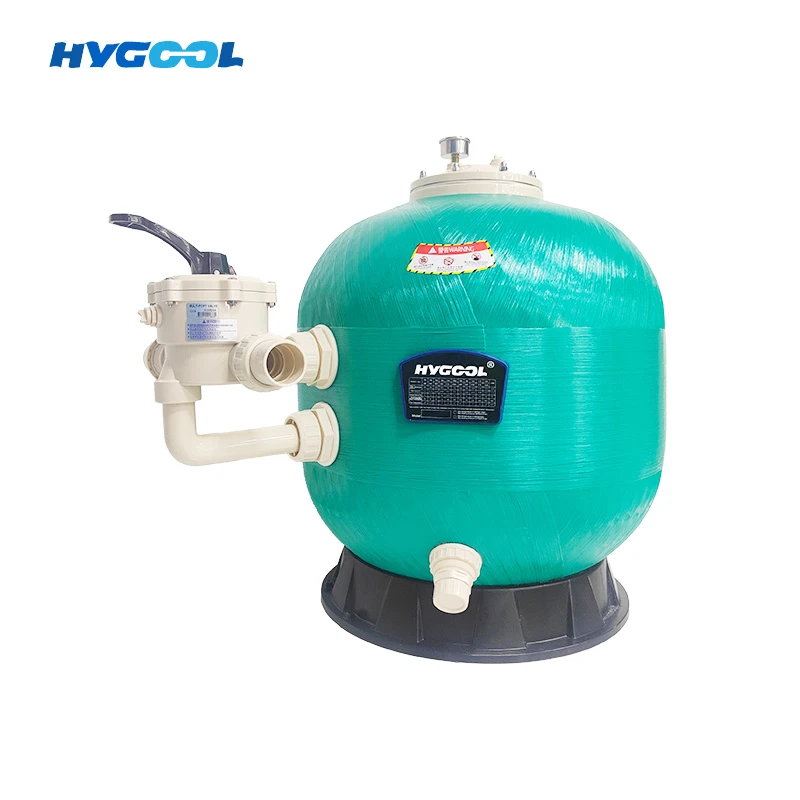

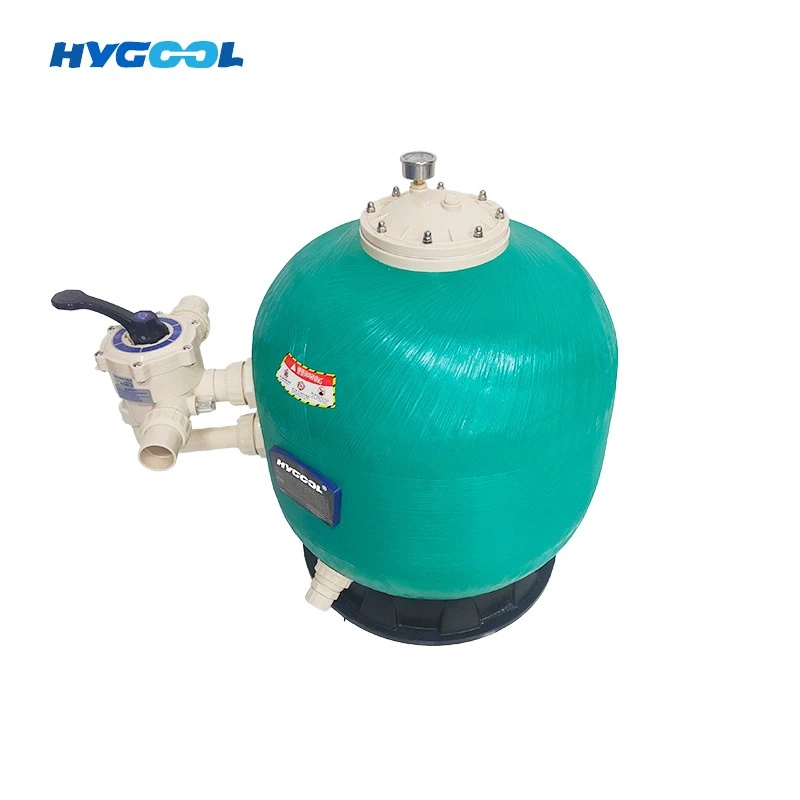

Why Choose Our Side Mount Pool Filter ?
Built using advanced fiberglass winding technology and an optimized hydraulic model, this product is specifically designed for efficient filtration of recreational water bodies such as swimming pools, water parks, hot springs, and spas. Combining a compact structure, strong corrosion resistance, easy maintenance, and adaptability to different spaces, this product is the ideal choice for various recreational water filtration systems.
Guangzhou Qiaoyi Water Treatment Technology Co., Ltd. is one of the leading manufacturers and suppliers of side mount pool filter in China. We warmly welcome you to wholesale discount side mount pool filter from our factory. If you have any enquiry about customized service and after-sales service, please feel free to email us.
Hot Tags: side mount pool filter, China side mount pool filter manufacturers, factory, High Flow Swimming Pool Pump, Pool Filter Circulation Pump, Pool Sand Filter Top Mount, Side Mount Pool Filter, swimming pool filter system, Swimming Pool Water Circulation Pump

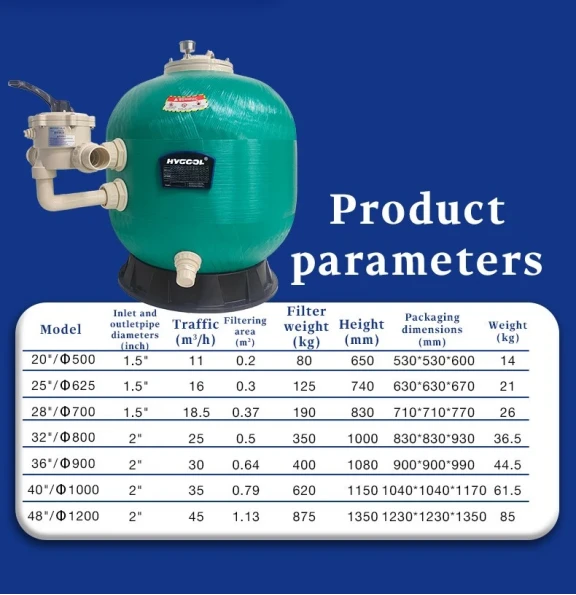

| Model | Inlet and outlet pipe diameters (inch) | Traffic (m³/h) | Filtering area (m²) | Filter weight (kg) | Height (mm) | Packaging dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 20"/Φ500 | 1.5" | 11 | 0.2 | 80 | 650 | 530×530×600 | 14 |
| 25"/Φ625 | 1.5" | 16 | 0.3 | 125 | 740 | 630×630×670 | 21 |
| 28"/Φ700 | 1.5" | 18.5 | 0.37 | 190 | 830 | 710×710×770 | 26 |
| 32"/Φ800 | 2" | 25 | 0.5 | 350 | 1000 | 830×830×930 | 36.5 |
| 36"/Φ900 | 2" | 30 | 0.64 | 400 | 1080 | 900×900×990 | 44.5 |
| 40"/Φ1000 | 2" | 35 | 0.79 | 620 | 1150 | 1040×1040×1170 | 61.5 |
| 48"/Φ1200 | 2" | 45 | 1.13 | 875 | 1350 | 1230×1230×1350 | 85 |
