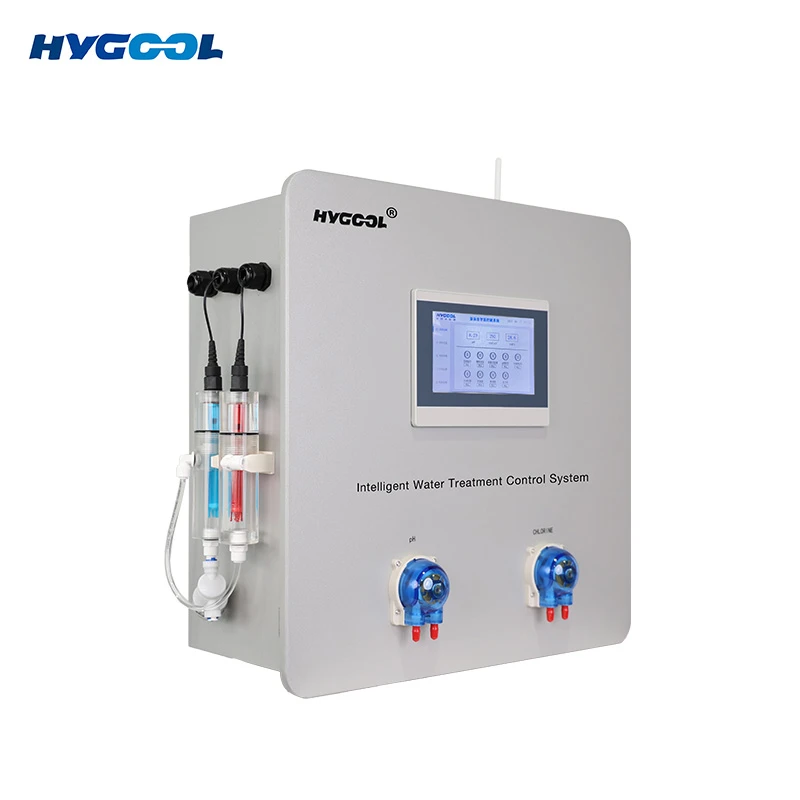

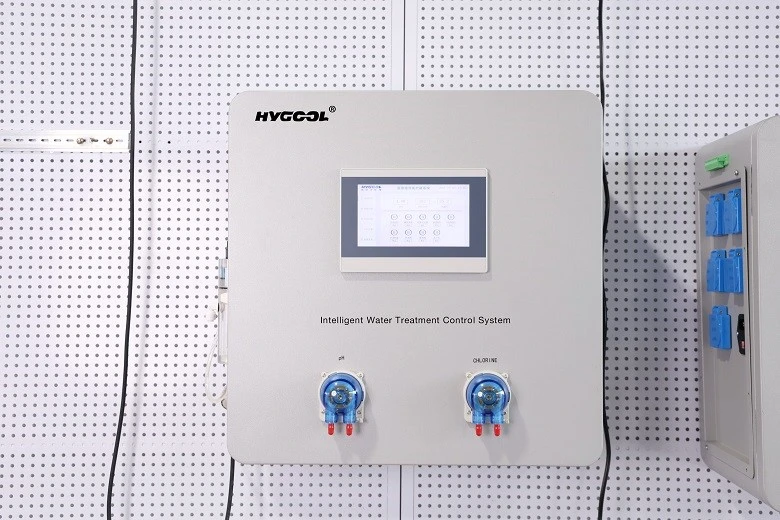

The smart water quality monitoring dosing system is an all-in-one solution for swimming pools and water treatment applications. Featuring a 7-inch HD touchscreen, it integrates water quality monitoring, equipment control, and automatic chemical dosing. The system monitors pH, ORP, residual chlorine, turbidity, and temperature, while controlling pumps, filters, valves, and other equipment. With a peristaltic dosing pump and cloud remote monitoring, it delivers accurate dosing, real-time management, reduced maintenance, and improved operational efficiency.
high quality
Advanced Equipment
Professional Team
One-Stop Solution
Core Features & Benefits

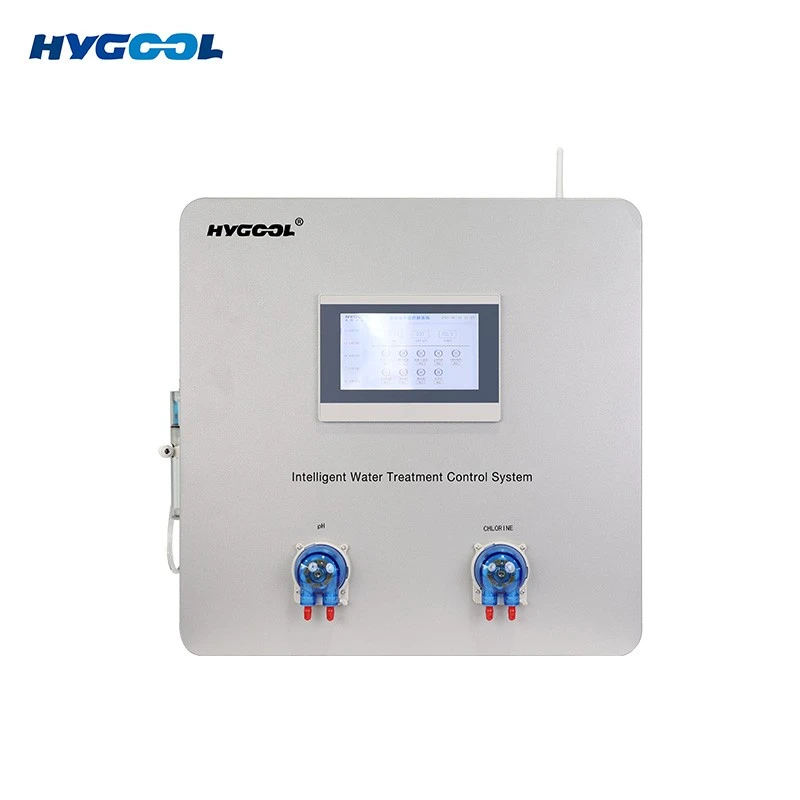

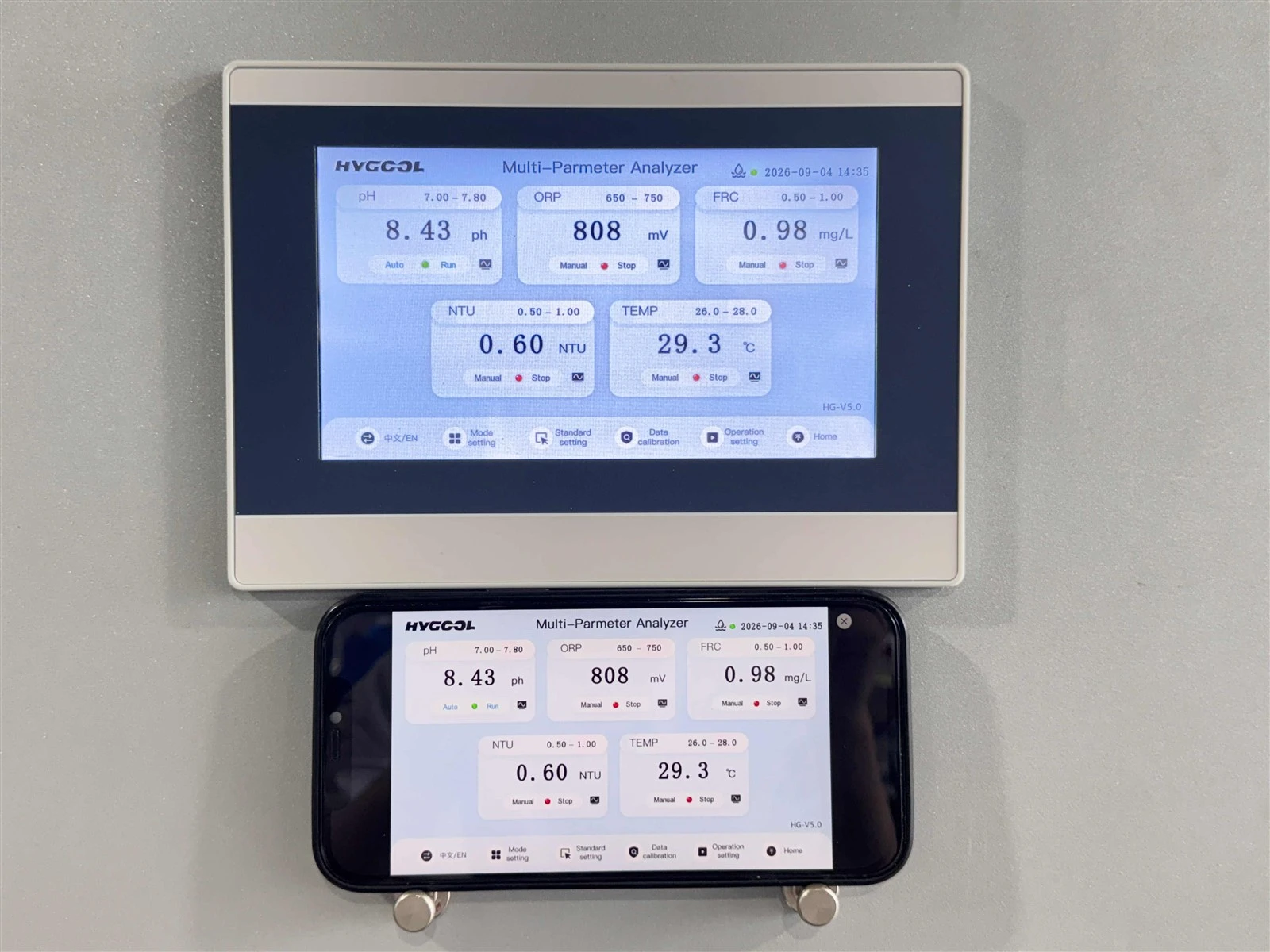

7-inch high-resolution touch screen
7-inch HD touch screen, Chinese-English bilingual, intuitive operation
Simple and convenient to operate,with a variety ofinternational standard parametersto choose from.
Drug delivery system
Dual peristaltic pumps provide independent dosing to avoid cross-contamination.
5-channel relay output control can directly drive dosing equipment below 2A for fully automatic dosing
Control Core
- Intelligent algorithms automatically adjust and precisely control.
- Data cloud storage, intelligent analysis reports
- Single-point calibration method, supporting background remote assistance calibration.
Monitoring System
Four parameters are monitored simultaneously, and the data is updated in real time.
Product Features
Monitoring parameters: Five parameters: pH, ORP, residual chlorine, turbidity, and temperature.
Control equipment: Circulation pump, sand filter, chemical dosing pump, drain valve, thermostatic system, underwater lights, etc.
Drug delivery system: Equipped with a peristaltic pump, fully automatic drug dispensing.
Internet connectivity: Cloud monitoring, multiple network connection modes
User interface: Bilingual (Chinese and English), graphical interface
High accuracy and stable performance: employs high-precision signal acquisition and amplification circuits.
Why Choose Our smart water quality monitoring dosing system?
The HYGOOL smart water quality monitoring dosing system is a smart automation solution designed for swimming pools and various water treatment applications. Equipped with a 7-inch HD touchscreen, it integrates water quality monitoring, equipment control, and automatic chemical dosing into one platform. The system continuously monitors pH, ORP, residual chlorine, turbidity, and temperature, while intelligently controlling circulation pumps, sand filters, dosing pumps, drain valves, thermostatic systems, and underwater lights. Featuring a high-precision peristaltic dosing pump and cloud remote monitoring, it enables real-time management, reduces manual operation, improves water quality stability, and enhances overall operational efficiency.
Guangzhou Qiaoyi Water Treatment Technology Co., Ltd. is one of the leading manufacturers and suppliers of smart water quality monitoring dosing system in China. We warmly welcome you to wholesale discount smart water quality monitoring dosing system from our factory. If you have any enquiry about customized service and after-sales service, please feel free to email us.
Hot Tags: smart water quality monitoring dosing system, China smart water quality monitoring dosing system manufacturers, factory, Intelligent Water Quality Testing Equipment For Swimming Pools, pool water monitoring system, Smart PH Sensor, Smart Water Quality Monitoring Dosing System, Swimming Pool Water Quality Monitoring Equipment, Water Quality Online Monitor

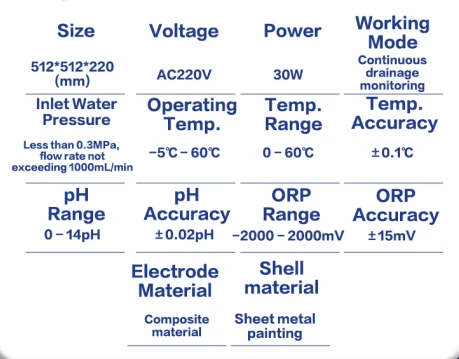

| Parameter | Specification |
|---|---|

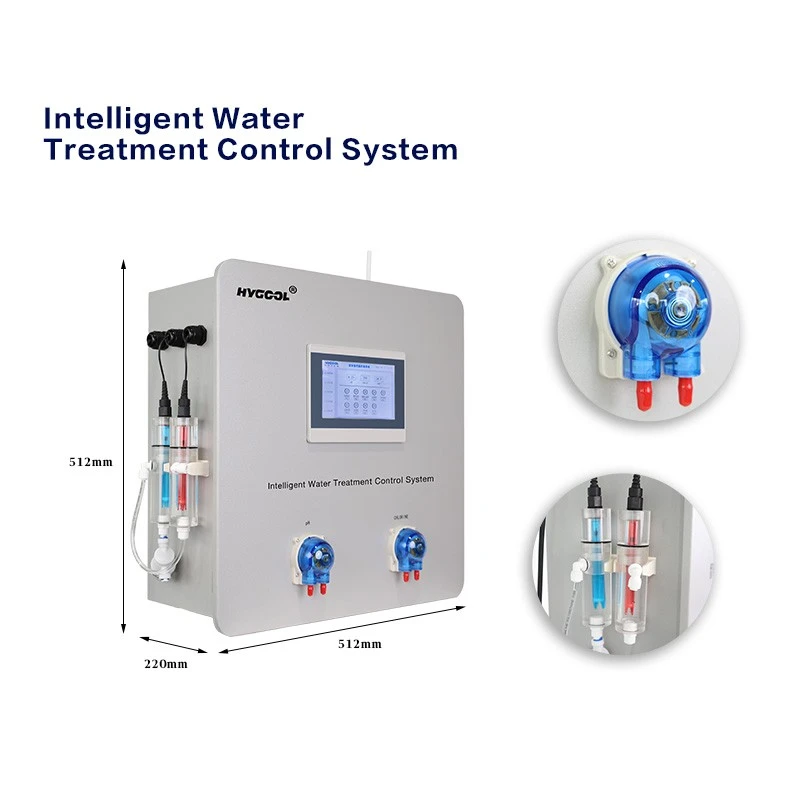

| Size | 512×512×220 mm |
| Voltage | AC220V |
| Power | 30W |
| Working Mode | Continuous drainage monitoring |
| Inlet Water Pressure | Less than 0.3MPa, flow rate not exceeding 1000mL/min |
| Operating Temp. | -5℃‑60℃ |
| Temp. Range | 0‑60℃ |
| Temp. Accuracy | ±0.1℃ |
| pH Range | 0‑14pH |
| pH Accuracy | ±0.02pH |
| ORP Range | -2000‑2000mV |
| ORP Accuracy | ±15mV |
| Electrode Material | Composite material |
| Shell material | Sheet metal painting |
