XinYu Fairy Lake Tianmu Hot Spring Resort Hotel

Premium Water Treatment Solution for Luxury Hot Spring Resorts

Fairy Lake Tianmu Hotel Case Study by Qiaoyi

Location: Fairy Lake Scenic Area, Xinyu, Jiangxi (AAAA-rated)
Project Content: 28 pools – indoor/outdoor, spa, children's, villa, VIP
Project Objectives: Stable water quality across varied temps & loads, minimal manual work
Solution: Qiaoyi – ozone+UV disinfection, temp control, DCS automation
Project Deliverables: Guest safety, energy efficiency, simple maintenance



XinYu Fairy Lake Tianmu Hot Spring Resort Hotel

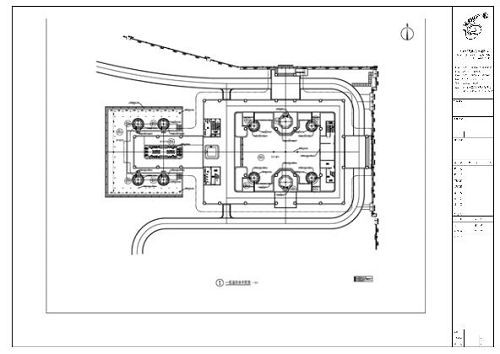

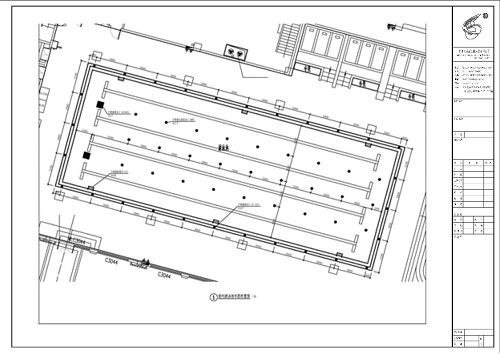

Design Framework:



Our design approach ensures that every pool - regardless of size or function - delivers consistent, safe water quality with minimal operator intervention.



custom pool designs

custom swimming pool design

commercial pool design

Treatment per pool type:

Each pool receives a dedicated system tailored to its function (circulation, filtration, disinfection, heating/cooling, massage)

01

Unified control architecture:

All equipment integrated via DCS (Distributed Control System) for centralized monitoring and distributed control

02

Redundancy & reliability:

Dual disinfection (ozone + UV) ensures continuous water quality even during peak loads

03

Energy optimization:

Variable-frequency pumps and efficient heat exchangers reduce operational costs

04

Construction & Installation Process



The construction phase is a crucial stage in transforming the design scheme into an actual operating system. This project strictly adheres to standardized construction procedures to ensure both project quality and schedule.

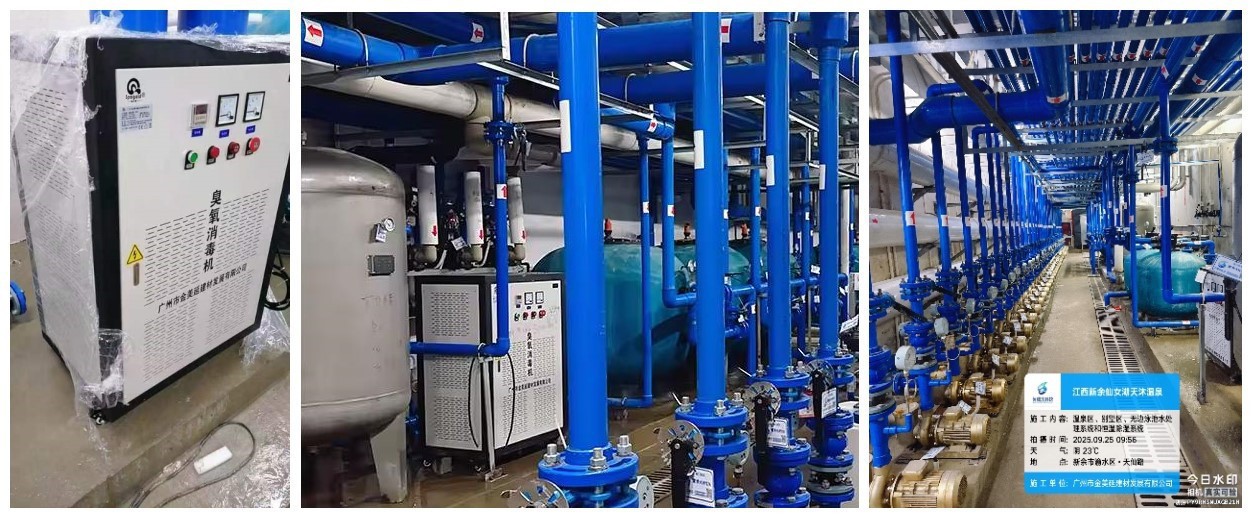

Pipework Installation

Pipework Installation

Equipment Placement

Equipment Placement

Electrical & Control Wiring

Electrical & Control Wiring

Pool Shell Preparation

Pool Shell Preparation

Commissioning Procedure
Commissioning Procedure

Safety Compliance

Safety Compliance

Core Equipment & Technology



With piping, equipment positioning, and electrical wiring completed during construction, the installed system now delivers the intended performance. Below are the key products deployed and their specific roles.



Core Equipment & Technology



With piping, equipment positioning, and electrical wiring completed during construction, the installed system now delivers the intended performance. Below are the key products deployed and their specific roles.

page-260-260

Air-cooled ozone generator with auto-cycle ensures efficient disinfection.

View More

page-278-278
Low Pressure UV Sterilizer
Low-pressure UV sterilizer with smart controls ensures stable, long-lasting disinfection.
page-254-254

Durable plastic pump with strainer ensures quiet, high-flow operation.

View More

page-300-300

Smart touchscreen control system for integrated water management.



Project Results



With all equipment operational since the resort opened in 2025, the system has delivered consistent results across water quality, operational efficiency, and guest satisfaction.

Outdoor heated pool at luxury hot spring resort
Mountain view swimming pool in spa hotel
Infinity edge pool overlooking valley resort
Family-friendly pool area with hot tub
Indoor geothermal pool with glass roof
Indoor hot spring pool
Heated indoor swimming pool
Panoramic swimming pool terrace
Natural stone hot spring bath in resort
Eco-friendly mineral pool in wellness retreat
Heated outdoor pool with palm trees and cabanas
Pool deck with loungers and hot spring water



Name

Water area(m2)

Water volume(m3)

Core equipments

Systems

Indoor constant temperature swimming pool

330

462







Ozone generator,

Low pressure UV sterilizer,

Plate heat exchanger,

chiller,

Pool functional water pump,

Pool Air pump,

Smart control box etc.

Pool circullation, Pool filtration,

Pool disinfection, Pool constant temperature, Pool hehating

Indoor children's play pool

109

32.7

Pool circullation, Pool filtration,

Pool disinfection, Pool constant temperature, Pool hehating, Pool massage function

Indoor spa pool

190

152

Pool circullation, Pool filtration,

Pool disinfection, Pool constant temperature, Pool hehating Pool cooling,

Indoor hot spring pools (3pcs)

14.5

(average)

11.6

(average)

Pool circullation, Pool filtration,

Pool disinfection, Pool constant temperature, Pool hehating

Ourdoor swimming pool(2pcs)

140-612

168-734.4

Pool circullation, Pool filtration,

Pool disinfection

Outdoor children's play pool 1

670

201

Outdoor children's play pool 2

670

201

Pool circullation, Pool filtration,

Pool disinfection, Pool constant temperature, Pool hehating

Outdoor hot spring pool(16pcs)

8~18

6.4-14.4

Outdoor spa pool

55

55

Pool circullation, Pool filtration,

Pool disinfection, Pool constant temperature, Pool hehating, Pool massage function

Villa small hot spring pool (17 pcs)

2.1(average)

1.7(average)

Pool circullation, Pool filtration,

Pool disinfection, Pool constant temperature, Pool hehating

VIP guest room hot spring pool (3pcs)

6(average)

4.8(average)
